250R 77mm (+5) OEM stroker crank done by ESR. Needs a new rod. Very low hours on this crank, it was brand new OEM purchased and stroked by ESR. Has surface rust from sitting around. Threads are perfect.

$75 OBO ($400 new)





·
Registered
Joined
·
206 Posts
i am really interested but what else has to be done to run the stroker crank if using with stock cylinder and head and what rod does it use?


·
Registered
Joined
·
388 Posts
Discussion Starter #3
i am really interested but what else has to be done to run the stroker crank if using with stock cylinder and head and what rod does it use?
It uses a 250R long rod (OEM or Hot Rods) 88-89 style.

Also need to run a cylinder spacer to bring the cylinder up. ESR sells them. (If you have a Pro-x cylinder I have one).

If using a stock head, you might need it cut, depending on squish, etc. ESR sells cool heads w/ cut domes for both OEM and Pro-X if you are running a cool head or want to buy one.


Teddy


·
Registered
Joined
·
206 Posts
i am running a long rod with a 86 piston now so i have a 5mm spacer but what style piston does it use.

matt


·
Registered
Joined
·
388 Posts
Discussion Starter #5
i am running a long rod with a 86 piston now so i have a 5mm spacer but what style piston does it use.

matt
Not real sure about stock cylinders, but with my pro-x's it is just a standard wiseco pro-lite. Anything that I can't help you with ESR can answer, they are good about that.

Teddy


·
Registered
Joined
·
206 Posts
what i was looking to do if i decide to get it, rebuild the crank then swap it with my crank now and run it like this until i can save some money for a big bore cylinder or big bore sleeve. if it is a 86 style piston i can run my ported cylinder. if it is a 87-89 style piston i will have to run my stock cylinder. i am not to sure when i will get the big bore because i am in college and going to be taking 20 credits and in class from 8-8 m-f :eek:


·
Registered
Joined
·
388 Posts
Discussion Starter #7
what i was looking to do if i decide to get it, rebuild the crank then swap it with my crank now and run it like this until i can save some money for a big bore cylinder or big bore sleeve. if it is a 86 style piston i can run my ported cylinder. if it is a 87-89 style piston i will have to run my stock cylinder. i am not to sure when i will get the big bore because i am in college and going to be taking 20 credits and in class from 8-8 m-f :eek:
Depending on your port timing, I do not believe you will be able to run this crank with your ported cylinder. You can ask ESR, I am still not quite sure if you can use your 86 style piston or not. It all depends on how aggressive the porting is.

If I were you I wouldn't worry about getting a big bore cylinder right now, just build a nice motor using that stock cylinder. Have it ported and run it. In the future, if you wanted to add a 270 or bigger sleeve you could.


·
Registered
Joined
·
190 Posts
is it possible to get a shot of the crank from the clutch side?

thanks


·
Registered
Joined
·
388 Posts
Discussion Starter #9

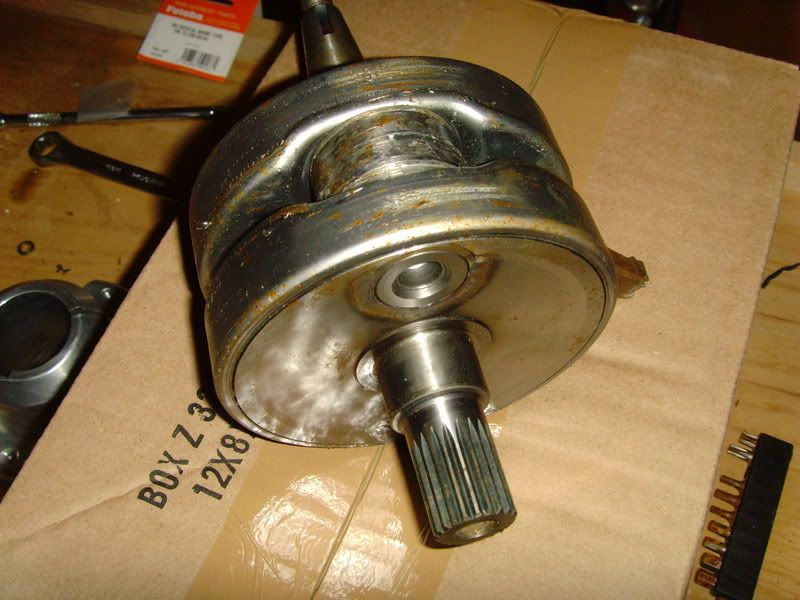

Sorry the pics are not the best, but here ya go! The threads on both sides are perfect.




·
Registered
Joined
·
23 Posts
Still available, will do shipped to your front door guys!

Teddy

still got it??? Ive got an 88 with a stock cyilinder i cant remeber right now but i think its a 30 over bore and a cool head what am i going to have to do to make it work?


·
Registered
Joined
·
388 Posts
Discussion Starter #12
Still have it, $50 shipped to your door. All you will need is a cylinder spacer to make it work, since you already have a LR cylinder.


·
Banned
Joined
·
1,209 Posts
Still have it, shipped to your door. All you will need is a cylinder spacer to make it work, since you already have a LR cylinder.

ted how did that rod break pro x ? i heard bad things about hot rods i went with est 4mm pro x rod


·
Registered
Joined
·
388 Posts
Discussion Starter #14
Overrev contributed to this failure, other than that I don't know. That $100 +/- rod caused a lot of damage (took out my cases + cylinder=both were unable to be repaired) I have used Hot Rods and OEM and never had a failure. I guess its just the way it goes.

If you are building a stroker motor, I would probably recommend an OEM rod, JMO.

Going a different route now and don't need this crank anymore.
